| Self Rim |
 |
 |
|

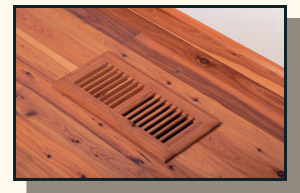

Self Rim grilles provide two way diffusion and are the preferred style for most flooring surfaces. The grille simply "drops" in to a hole cut in the finish flooring. This versatile style can be used with new or existing hardwood floors, laminate, carpet, tile, or vinyl, with the rim of the grille neatly concealing the cut edge of the finish flooring. Each grille is 3/4" thick with a bull nosed rim that is 1" wide by 3/8" thick.
Order grilles by duct opening.
|
Standard Sizes
Duct Size |
Free Area (sq. in.) |
Overall Dimensions |
2¼ x 10
2¼ x 12
2¼ x 14
4 x 10
4 x 12
4 x 14
6 x 10
6 x 12
6 x 14
|
6.70
8.18
9.67
13.95
17.05
20.15
22.68
27.72
32.76
|
4¼ x 12
4¼ x 14
4¼ x 16
6 x 12
6 x 14
6 x 16
8 x 12
8 x 14
8 x 16
|
|
 |
|
