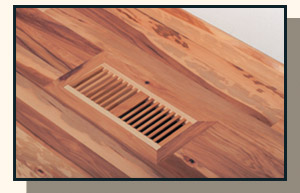

Flush w/ Frame
Flush with Frame grilles provide two way diffusion and are the preferred style for sand and finish hardwood floors where an architecturally smooth look is desired. Each frame is grooved on the outside to accommodate most 3/4" tongue and groove flooring. All grilles are 3/4" thick, with a 1 3/8" wide frame which adds 2 1/4" to the overall dimension of the grille. Custom thicknesses are available upon request (20% upcharge).

Order grilles by duct opening.

Standard Sizes
Duct Size
Free Area (sq. in.) Overall Dimensions
2¼ x 10
2¼ x 12
2¼ x 14

4 x 10
4 x 12
4 x 14

6 x 10
6 x 12
6 x 14

6.70
8.18
9.67

13.95
17.05
20.15

22.68
27.72
32.76

   5 x 12¾
  5 x 14¾
  5 x 16¾

6¾ x 12¾
6¾ x 14¾
6¾ x 16¾

8¾ x 12¾
8¾ x 14¾
8¾ x 16¾
