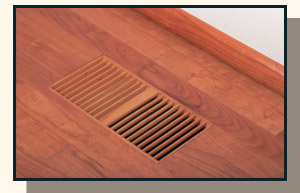

| Flush Mount
|
 |
 |
|
Flush Mount grilles provide two way diffusion and are used with
hardwood floors as independent inserts (without frame) that rest on
top of the sub floor and sit flush with the finished floor. These units
are primarily used for new hardwood floor installation but may be used
with existing hardwood floors. Other applications include wall or ceiling
installations where a flush surface is required. Each grille is 3/4"
thick with a rail that is 3/8" wide with straight edges and no undercut.
Order by overall dimension.
|
Standard Sizes
Duct Size |
Free Area (sq. in.) |
Overall Dimensions |
2¼ x 10
2¼ x 12
2¼ x 14
4 x 10
4 x 12
4 x 14
6 x 10
6 x 12
6 x 14
|
10.80
12.90
15.10
19.20
23.00
26.90
28.80
34.50
40.30
|
4 x 12
4 x 14
4 x 16
6 x 12
6 x 14
6 x 16
8 x 12
8 x 14
8 x 16
|
|
 |
|
